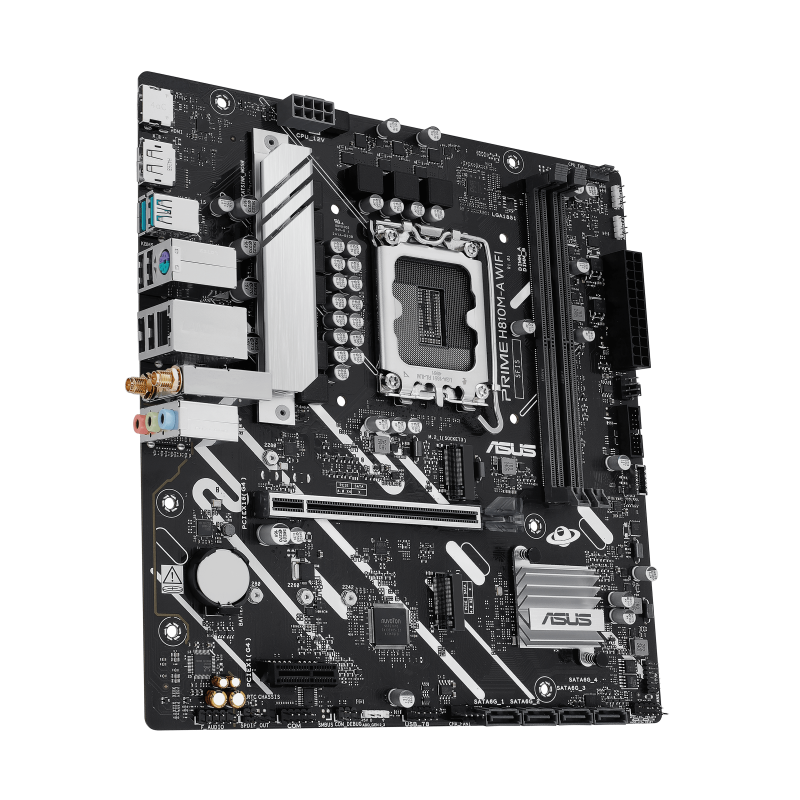

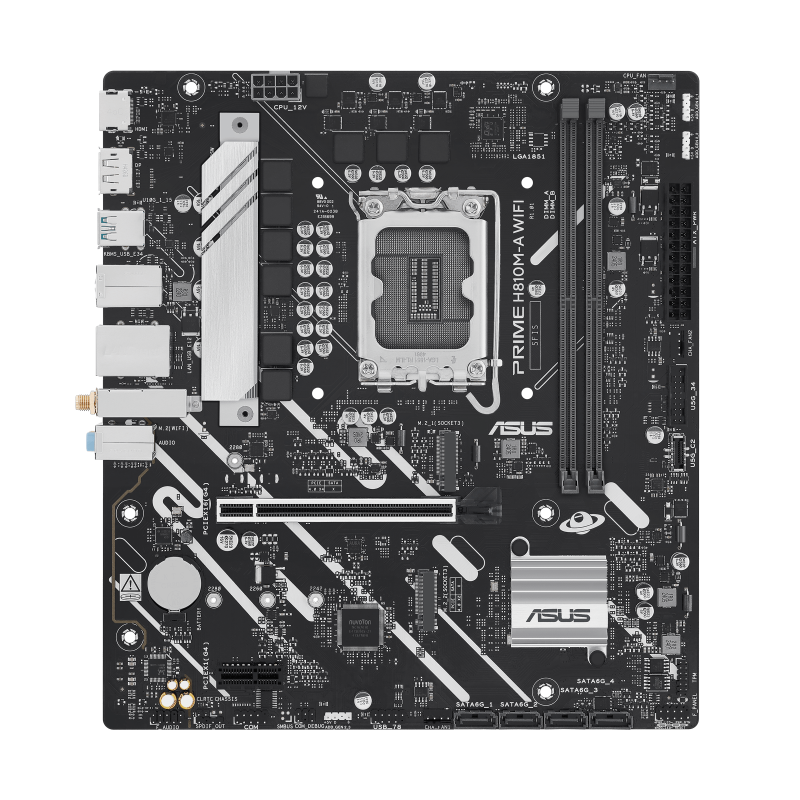

The ASUS PRIME H810M-A WIFI-CSM is a feature-rich Micro-ATX motherboard engineered to unlock the full potential of Intel® Core™ Ultra Processors (Series 2) with the LGA1851 socket. Designed for PC DIY builders and enterprise users, this motherboard supports up to 128GB DDR5 RAM across 2 DIMM slots with speeds reaching up to 6400MT/s. ASUS's innovative DIMM Fit and DIMM Fit Pro memory tuning ensure maximum compatibility and performance.

Storage capabilities are extensive, offering two M.2 slots (one supporting PCIe 4.0 x4 up to 64Gbps and another supporting PCIe 4.0 x2) alongside four SATA 6Gb/s ports for ample expansion.

For graphics and expansion, it includes a PCIe 4.0 x16 slot for discrete GPUs and a PCIe 4.0 x1 slot for additional cards. Integrated Wi-Fi 6 and Bluetooth provide fast wireless connectivity, while Intel® I219-V Gigabit Ethernet delivers reliable wired networking.

Display outputs from compatible integrated CPU graphics include HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K@60Hz video. The board also features advanced cooling solutions like onboard heatsinks and hybrid fan headers for optimal thermal management.

ASUS’s intuitive UEFI BIOS, along with software utilities such as Armoury Crate and Aura Sync, allow users to customize and optimize their systems with ease. As a Corporate Stable Model (CSM), this board offers enterprise-focused features including management software support.

For reliability, extensive support is available through ASUS’s official website including drivers, BIOS updates, and manuals.

Key Highlights:

• Supports Intel Core Ultra Processors (Gen 2) with LGA1851 socket and H810 chipset


• Up to 128GB DDR5 RAM in 2 DIMM slots, with advanced memory tuning


• Dual M.2 slots with PCIe 4.0 support plus 4 SATA 6Gb/s ports


• PCIe 4.0 x16 and x1 expansion slots


• Integrated Wi-Fi 6, Bluetooth, and Intel 1 Gb Ethernet


• HDMI 2.1 and DisplayPort 1.4 outputs for 4K display support


• Comprehensive cooling and ASUS software ecosystem
