SKU: GV-N506TWF2OC-8GD 1.0
Availability: In Stock
Brand: Gigabyte
Category: Graphics Cards
100% Guarantee Safe Checkout

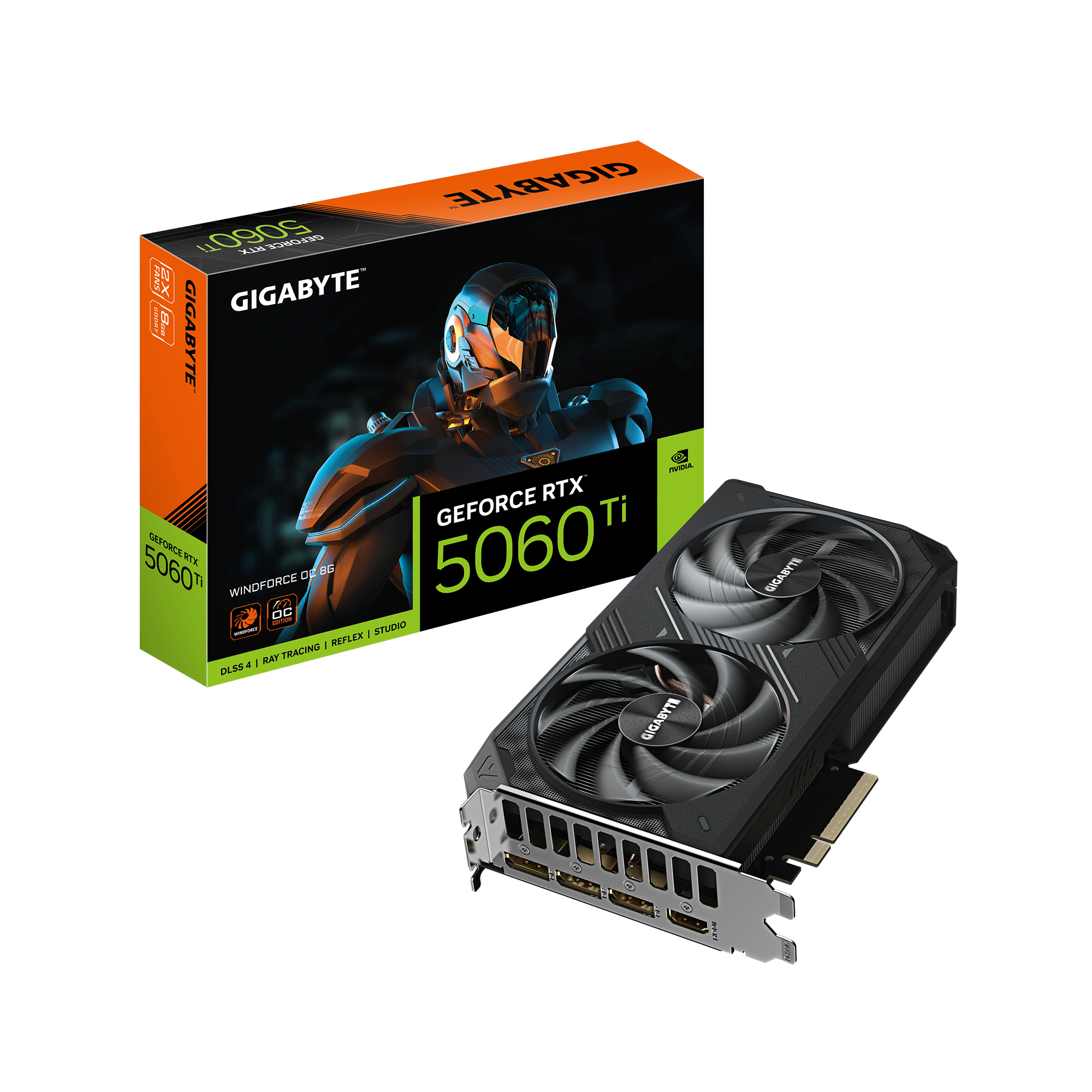

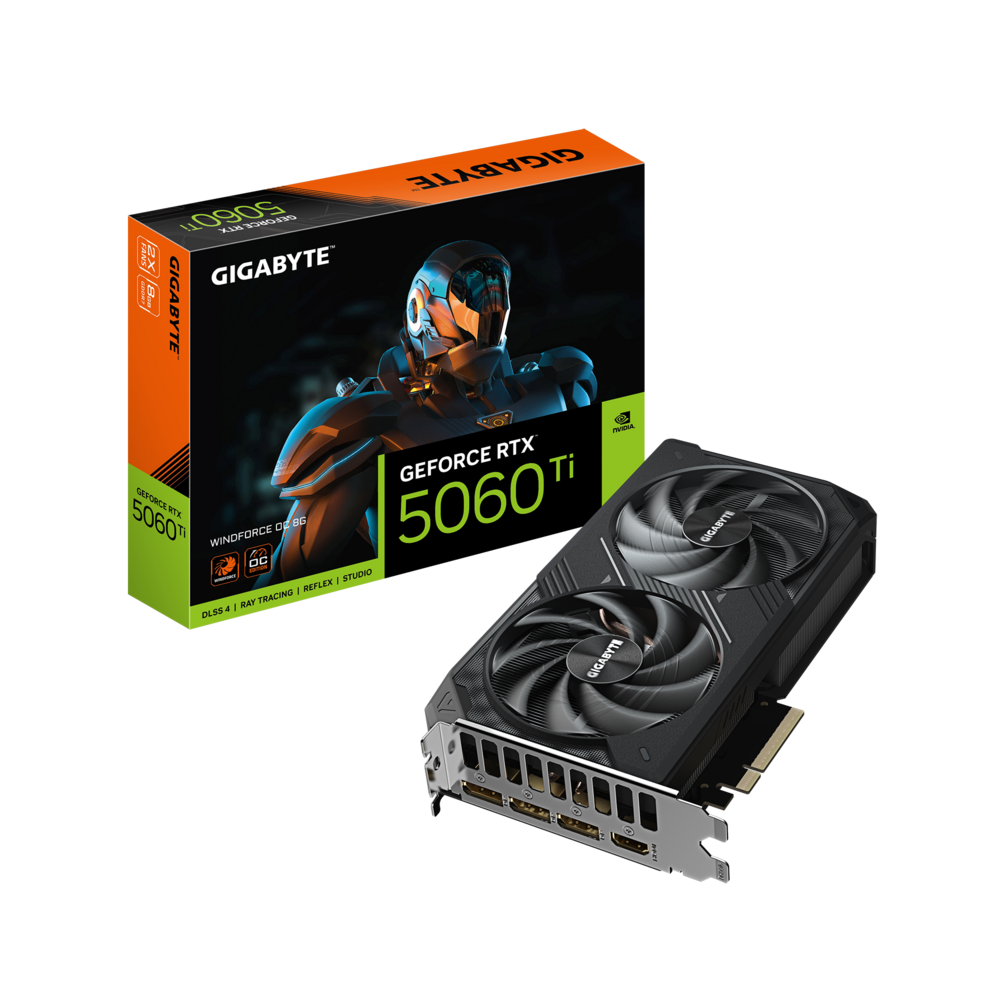

The Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G is a powerful gaming and content creation graphics card built on NVIDIA's latest Blackwell architecture. Featuring a factory overclocked core clock of 2587 MHz and equipped with 4608 CUDA cores, this card delivers exceptional performance for modern AAA titles and demanding graphical workloads.
It utilizes 8 GB of the new GDDR7 memory running at 28 Gbps on a 128-bit memory bus, providing ultra-fast data transfer rates. The card supports PCIe 5.0, ensuring future-proof bandwidth and compatibility.
The WINDFORCE cooling system combines multiple advanced technologies including Hawk fans with alternate spinning, server-grade thermal conductive gel for VRAM and MOSFET cooling, composite copper heat pipes, a copper plate in direct contact with the GPU die, and extended heatsink design with screen cooling to maximize heat dissipation while maintaining low noise levels. The cooling fans employ a 3D Active Fan semi-passive system to stop spinning at low loads for silent operation.
Connectivity is comprehensive with three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to 4 simultaneous displays at resolutions up to 7680 x 4320. The card’s robust design includes a reinforced backplate, adding structural integrity for durability.
Energy requirements are efficient with a single 8-pin power connector and a recommended 650 W PSU for stable operation. Compact dimensions (208 x 120 x 40 mm) and ATX form factor ensure compatibility with most gaming PC cases.
Key NVIDIA GPU features include 5th-Gen Tensor Cores with DLSS 4 support, 4th-Gen Ray Tracing Cores, and new streaming multiprocessors optimized for advanced AI and ray-tracing tasks.
Included in the box: Quick guide.
Upgrade your PC with the Gigabyte RTX 5060 Ti WINDFORCE OC for next-level performance, efficient cooling, and stunning visuals.
| PCB Form Factor | ATX |
| Maximum Displays Supported | 4 |
| DirectX Version | DirectX 12 |
| OpenGL Version | 4.6 |
| Dimensions (L x W x H) | 208 x 120 x 40 mm |
| Power Connectors | 1 \u00d7 8-pin |
| Cooling | WINDFORCE Cooling with Hawk fans,server-grade thermal gel,copper heat pipes,3D Active Fan |
| Display Outputs | 3 × DisplayPort 2.1b,1 × HDMI 2.1b |
| Max Digital Resolution | 7680 x 4320 |
| Recommended PSU | 650 W |
| Memory Bus Width | 128-bit |
| Interface | PCI Express 5.0 x16 |
| Memory Speed | 28 Gbps |
| memory_type | GDDR7 |
| Memory Size | 8 GB |
| CUDA Cores | 4608 |
| Form Factor | ATX |
| Dimensions (mm) | 208 x 120 x 40 |
| dimensions_lxwxh_mm | 208 x 120 x 40 |
| GPU Model | NVIDIA GeForce RTX 5060 Ti (Blackwell architecture) |
| Core Clock | 2587 MHz (factory overclocked) |
| Cooling Solution | WINDFORCE Cooling with Hawk fans,server-grade thermal gel,copper heat pipes,3D Active Fan |
| recommended_psu_watts | 650 |
| Max Displays Supported | 4 |
| Max Resolution | 7680 x 4320 |
| interface_pcie_lanes | x16 |
| interface_pcie_version | 5.0 |
| memory_type | GDDR7 |
| memory_bus_width_bits | 128 |
| memory_clock_speed_gbps | 28 |
| CUDA Cores | 4608 |
| memory_size_gb | 8 |
| GPU Architecture | Blackwell |
| Model | GeForce RTX 5060 Ti WINDFORCE OC 8G |
