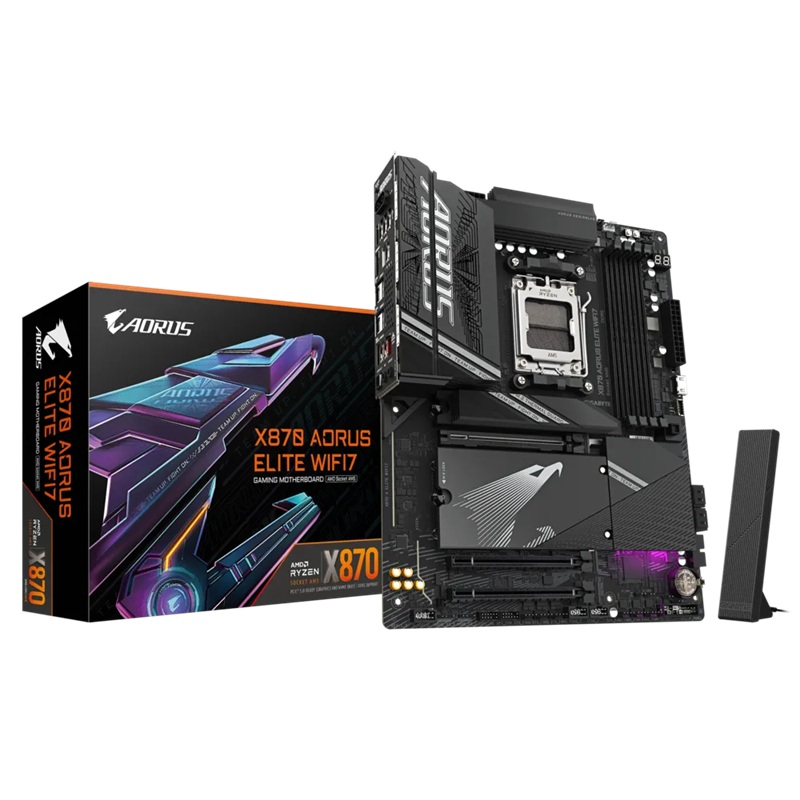

Gigabyte X870 AORUS ELITE WIFI7 is a premium ATX motherboard designed for AMD Socket AM5, supporting the latest AMD Ryzen™ 7000, 8000, and 9000 Series processors. Built around the powerful AMD X870 chipset, it provides robust power delivery with a digital twin 16+2+2 phase VRM and 2x copper PCB layers, ensuring exceptional stability and efficiency for overclocking and high-load performance.

Memory & Storage

Equipped with 4 DDR5 DIMM slots, this motherboard supports up to 256 GB of high-speed dual-channel memory with AMD EXPO technology for enhanced performance and easy tuning. Storage options include four M.2 slots—three supporting ultra-fast PCIe 5.0 x4 NVMe SSDs and one PCIe 4.0 slot—allowing expansive and blazing-fast storage configurations.

Expansion Slots & Connectivity

The X870 AORUS ELITE WIFI7 features a reinforced PCIe 5.0 x16 slot with PCIe UD Slot X for graphics card stability, supplemented by PCIe 4.0 x4 and PCIe 3.0 x2 slots for additional expansion cards. Comprehensive USB connectivity comprises dual USB4 Type-C ports (each up to 40 Gbps with DisplayPort Alternate mode), front panel USB-C 20 Gbps, multiple USB 3.2 Gen1/Gen2 ports, and legacy USB 2.0 headers.

Networking & Audio

Enjoy ultra-fast networking with integrated 2.5 GbE LAN and cutting-edge Wi-Fi 7 technology featuring a GIGABYTE directional antenna for superior wireless performance. The onboard Realtek ALC1220 audio codec, paired with audiophile-grade capacitors, delivers high-fidelity sound for immersive audio experiences.

Cooling & DIY Features

Advanced thermal solutions include VRM Thermal Armor with heatpipe and high-conductivity pads, multiple M.2 thermal guards, and Smart Fan 6 supporting up to eight PWM/DC fan headers for optimal cooling. User-friendly features such as EZ-Latch and EZ-Latch Plus for tool-less PCIe and M.2 installation, an integrated IO shield, EZ-Debug Zone, and Q-Flash Plus BIOS update ensure an effortless build and maintenance experience.

Software & Compatibility

Bundled with Norton® Internet Security (OEM) and LAN bandwidth management software, this motherboard is optimized for Windows 11 64-bit. It fully supports the latest AMD Ryzen processors and DDR5 memory technologies to future-proof your system.

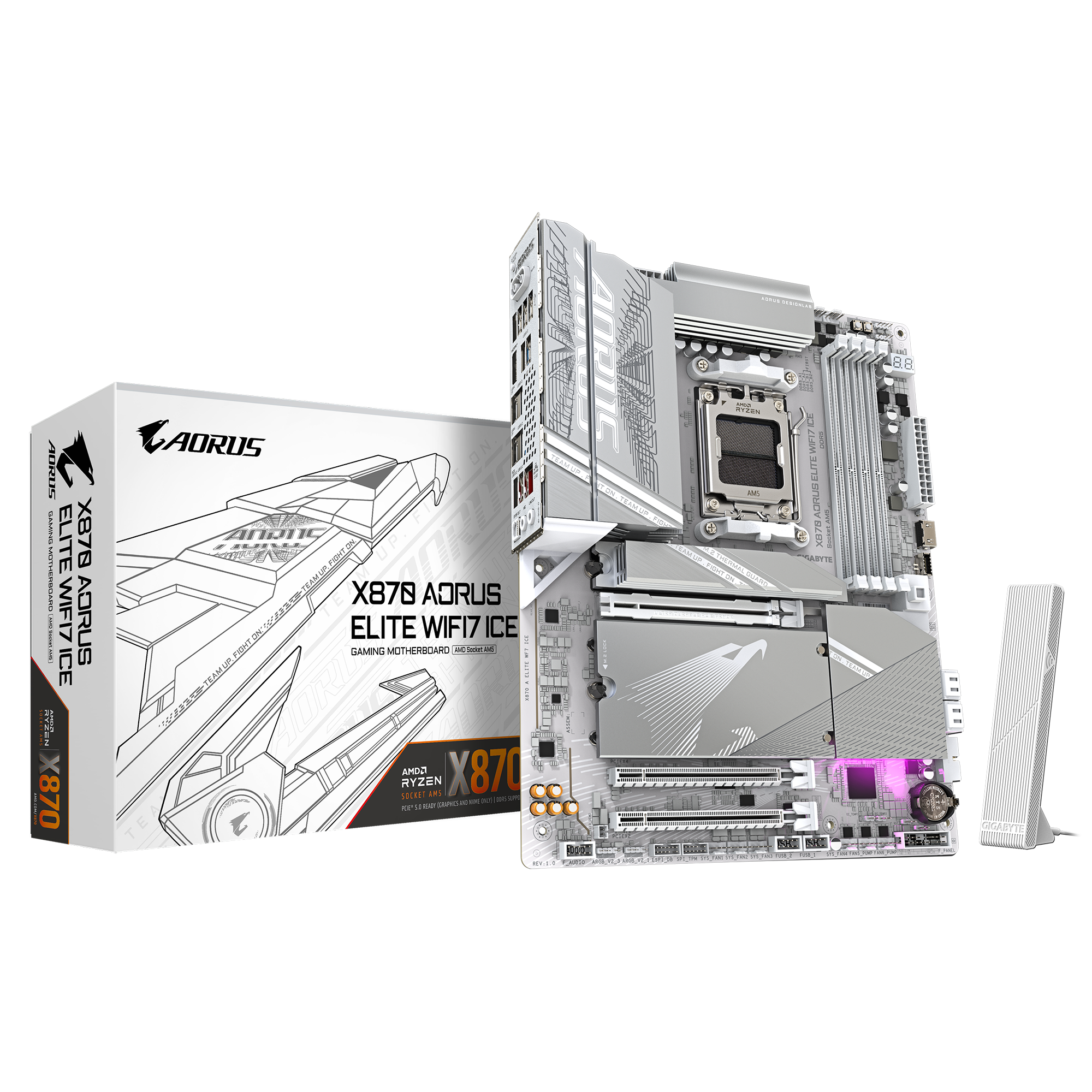

For enthusiasts seeking cutting-edge performance and reliability with modern features like Wi-Fi 7 and PCIe 5.0, the Gigabyte X870 AORUS ELITE WIFI7 ICE motherboard is an exceptional choice.
