The MSI Cubi NUC 1M-017BAU is a compact yet powerful mini PC barebone, designed to deliver robust performance and versatile connectivity in a small footprint. Powered by the Intel Core i3-100U processor with 6 cores and 8 threads, it strikes an excellent balance between energy efficiency (15W TDP) and processing power with clock speeds up to 4.70 GHz.

Designed for modern workflows, this mini PC supports dual-channel DDR5 SO-DIMM memory slots accommodating up to 64GB at 5200 MHz, unleashing fast and responsive multitasking capabilities. It offers flexible storage with two M.2 NVMe PCIe Gen4 x4 slots plus a 2.5" SATA drive bay for additional expansion.

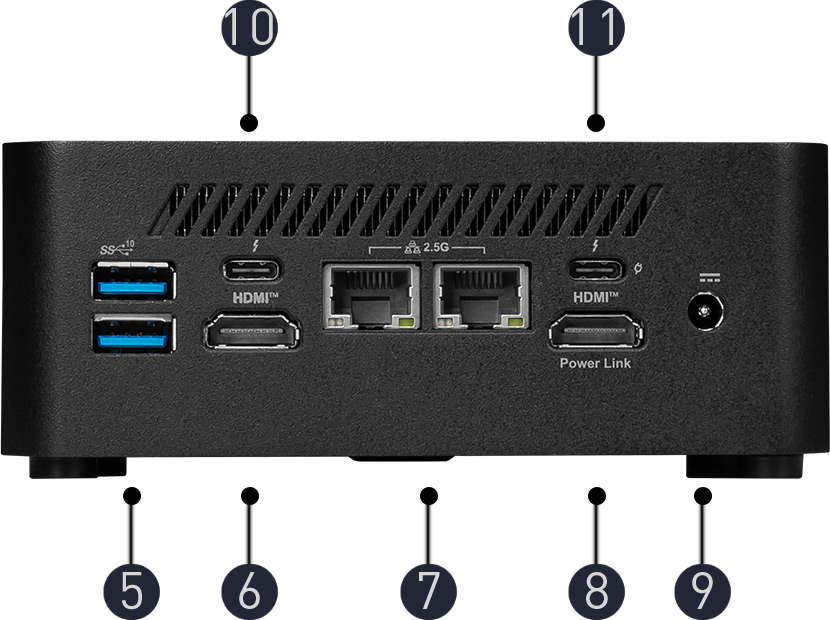

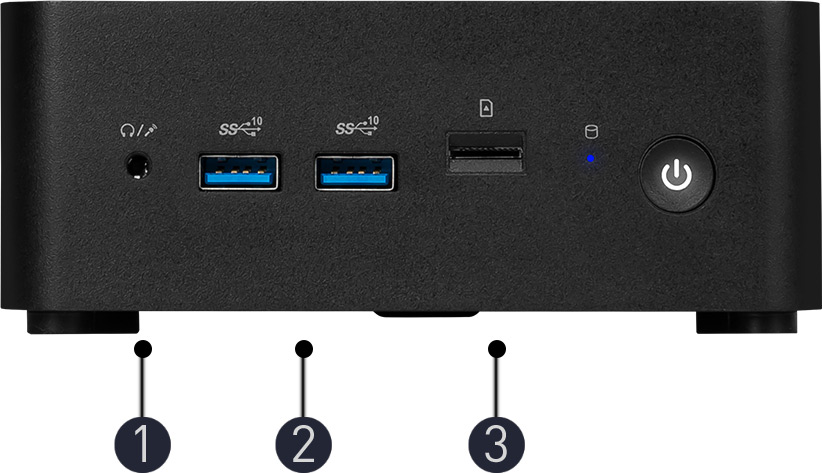

Connectivity is comprehensive: dual HDMI 2.1 ports and two Thunderbolt 4 ports (one supporting PD-in) provide multi-display support and high-speed data transfer options. Networking is fortified with dual 2.5G LAN (Intel I226-V), Wi-Fi 6E, and Bluetooth 5.3/5.4 compatibility. Additional ports include USB 3.2 Gen 2 (10G) Type-A and a card reader.

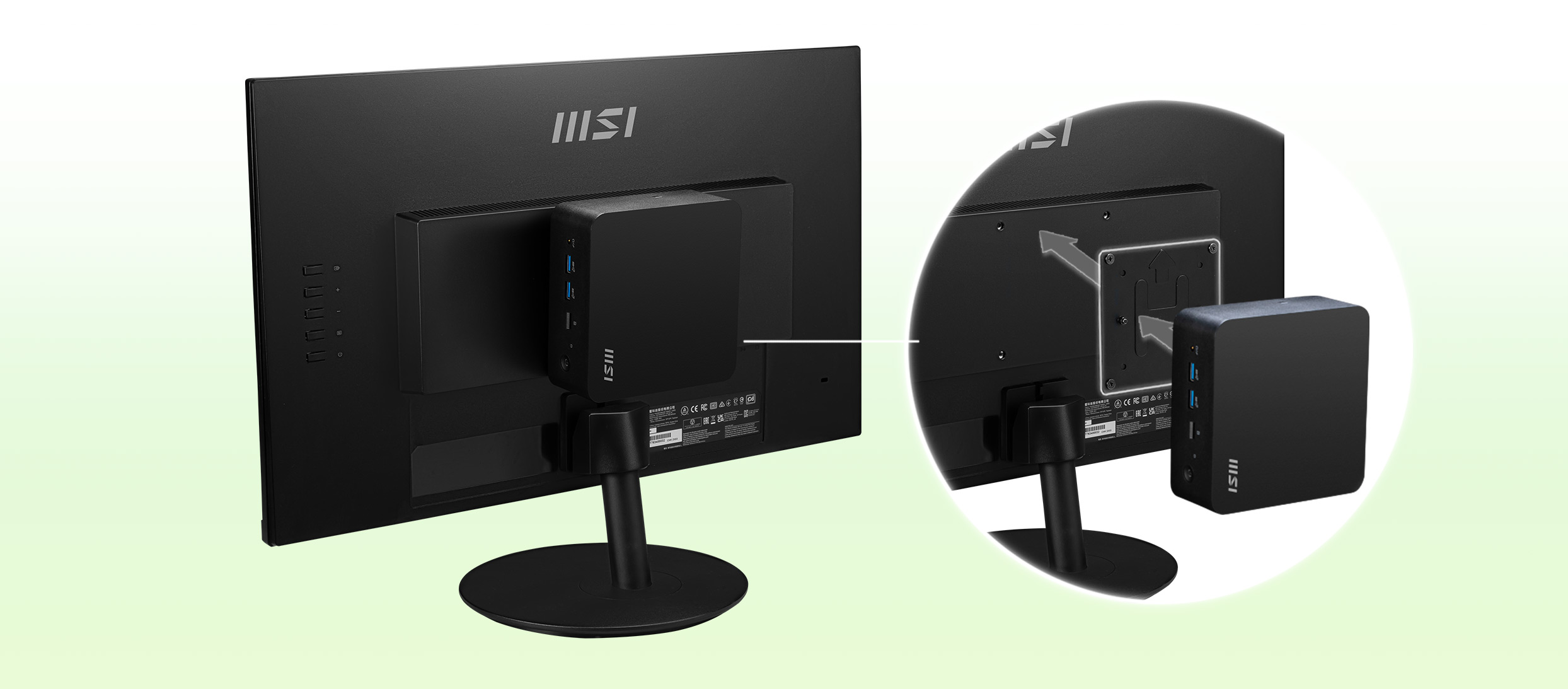

The compact 0.826-liter chassis features a VESA-mountable design (100x100 mm), perfect for saving desk space and mounting behind displays. Cooling is handled via an efficient air cooling system, while noise levels remain low even under load (28 dB idle, 38 dB full load). Included is a 120W power supply, switch cable, and a 3-year warranty ensuring reliability and peace of mind.

Key Benefits:

• Intel Core i3-100U 6-Core Processor, up to 4.7 GHz boost


• Dual DDR5 SO-DIMM slots supporting up to 64GB at 5200 MHz


• Dual M.2 NVMe PCIe Gen4 x4 SSD slots and 2.5" SATA drive bay


• Dual HDMI 2.1 and 2x Thunderbolt 4 ports


• Dual 2.5G LAN ports and Wi-Fi 6E + Bluetooth 5.3/5.4 for fast networking


• Compact, silent design with VESA mounting


• 3-year manufacturer warranty included
