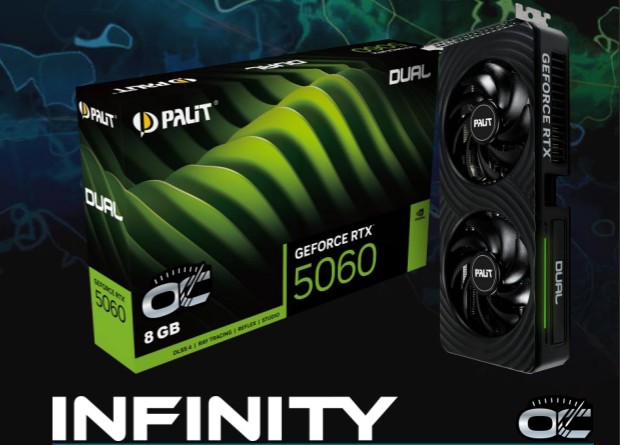

Palit GeForce RTX 5060 Infinity 2 OC 8GB GDDR7 128-bit 28 Gbps PCIe 5.0 Graphics Card NE75060V19P1-GB2063L
★ 0.0 Rating (0 user feedback)

SKU: ne75060v19p1-gb2063l

Availability: In Stock

Brand: Palit

Category: Graphics Cards

$699.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The Palit GeForce RTX 5060 Infinity 2 OC is a high-performance graphics card featuring NVIDIA’s latest Blackwell architecture. Equipped with 3840 CUDA cores, it delivers powerful gaming and creative performance boosted by 8 GB of cutting-edge GDDR7 memory operating at a blazing 28 Gbps across a 128-bit memory interface, achieving 448 GB/s bandwidth.

Operating at a base clock of 2280 MHz and boosting up to 2512 MHz, this factory-overclocked GPU supports PCI Express 5.0, offering future-proof motherboard compatibility. It includes advanced cooling solutions with composite heat pipes and a copper base for efficient thermal management and features a quiet 0-dB idle mode.

Connectivity features include three DisplayPort 2.1b ports and one HDMI 2.1b output, enabling ultra-high resolutions such as 4K at 480Hz or 8K at 120Hz with Display Stream Compression (DSC). The card supports gaming technologies like NVIDIA DLSS 4, Ray Tracing (4th gen cores), Tensor Cores (5th gen), NVIDIA Reflex 2, and NVIDIA Broadcast, ensuring an immersive and smooth experience.

With a recommended system PSU of 550 W and a single 8-pin supplemental power connector, the RTX 5060 Infinity 2 OC balances power and efficiency with a total graphics power (TGP) of 145 W. Its dual-slot design measuring 262.1 x 126.3 x 40.1 mm fits most gaming PC builds.

This model is suitable for demanding gaming, content creation, and AI workloads, supporting modern APIs including DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6, as well as multiple monitor setups with HDCP 2.3 compatibility.

Note: Specifications and features are subject to change; please refer to the official Palit product page for the latest information.

General

Supported APIsDirectX 12 Ultimate,Vulkan 1.4,OpenGL 4.6
CoolingComposite heat pipes with copper base,0-dB tech
Recommended PSU550 W or greater (ATX 3.x)
Max Resolution4K 480Hz or 8K 120Hz with DSC
Display Outputs3 x DisplayPort 2.1b,1 x HDMI 2.1b
Dimensions (L x W x H)262.1 x 126.3 x 40.1 mm
Power Connectors1 x 8-pin supplementary
TDP145 W
pci_expressPCIe 5.0 x16
Memory Speed28 Gbps
Memory Bandwidth448 GB\/s
memory_typeGDDR7
Memory Interface128-bit
Boost Clock2512 MHz
Memory Size8 GB
Base Clock2280 MHz
CUDA Cores3840
Manufacturer Part NumberNE75060V19P1-GB2063L
GPU ModelGeForce RTX 5060 Infinity 2 OC
dimensions_lxwxh_mm262.1 x 126.3 x 40.1
Driver SupportDirectX 12 Ultimate,Vulkan 1.4,OpenGL 4.6
Dimensions (mm)262.1 x 126.3 x 40.1
Cooling SolutionComposite heat pipes with copper base,0-dB tech
recommended_psu_watts550
tdp_watts145
Max Displays Supported4
interface_pcie_lanesx16
Max Resolution8K 120Hz with DSC,4K 480Hz
interface_pcie_versionPCIe 5.0
memory_bandwidth_gb_per_s448
memory_clock_speed_gbps28
ModelRTX 5060 Infinity 2 OC
CUDA Cores3840
Tensor Cores5th generation Tensor cores
RT Cores4th generation Ray Tracing cores
memory_size_gb8
memory_typeGDDR7
memory_bus_width_bits128
Features4th gen Ray Tracing cores,5th gen Tensor cores,DLSS 4,Reflex 2,NVIDIA Broadcast,AV1 encode/decode
