The Panorama B4BE-6-60 bracket mount antenna is a robust and ultra-wideband cellular solution designed for IoT, M2M, LTE, and 5G applications. Offering exceptional coverage across 617-960 MHz and 1710-6000 MHz frequency ranges, it supports 2G, 3G, 4G, and 5G cellular bands including Band 71 (600 MHz) for emerging networks.

Featuring an omni-directional radiation pattern, this antenna enables quick and hassle-free installation without the need for precise aiming. Its low-profile bracket, panel, or mast mount design is ideal for external deployment, delivering improved signal strength by elevating the antenna to optimal locations.

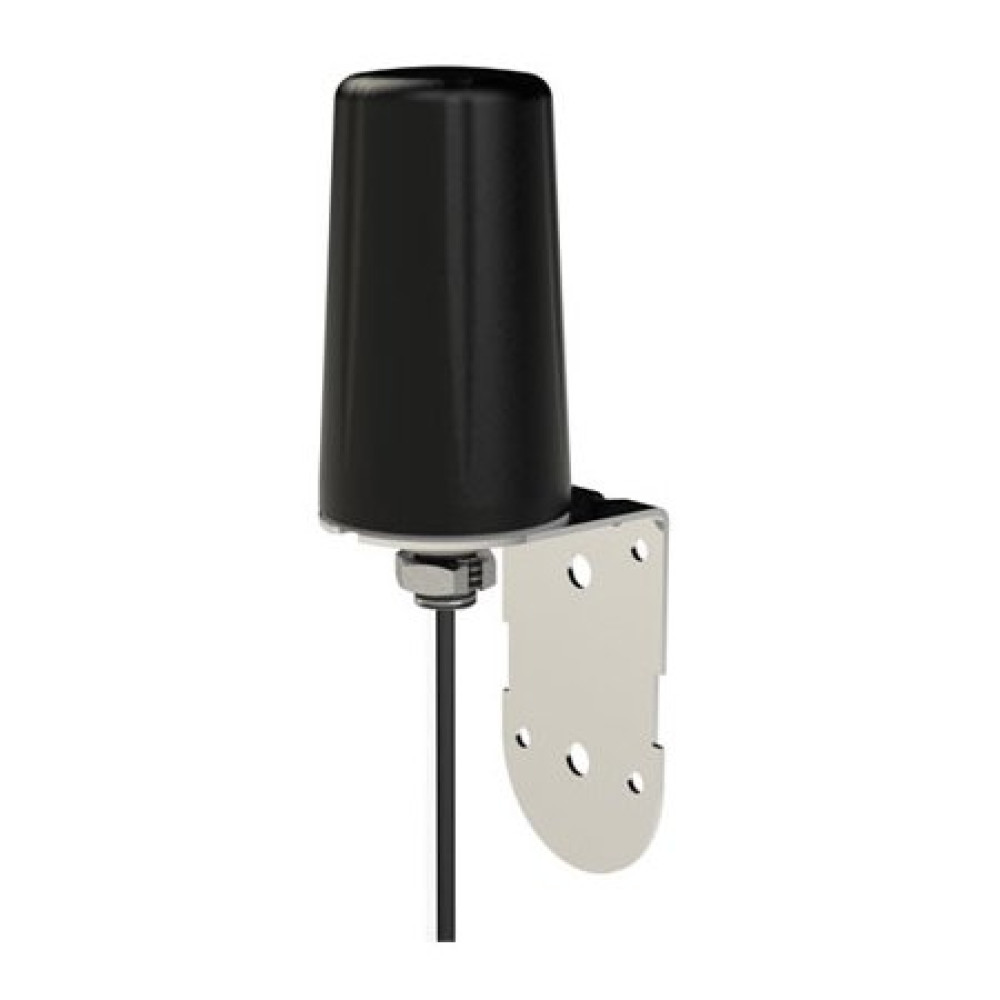

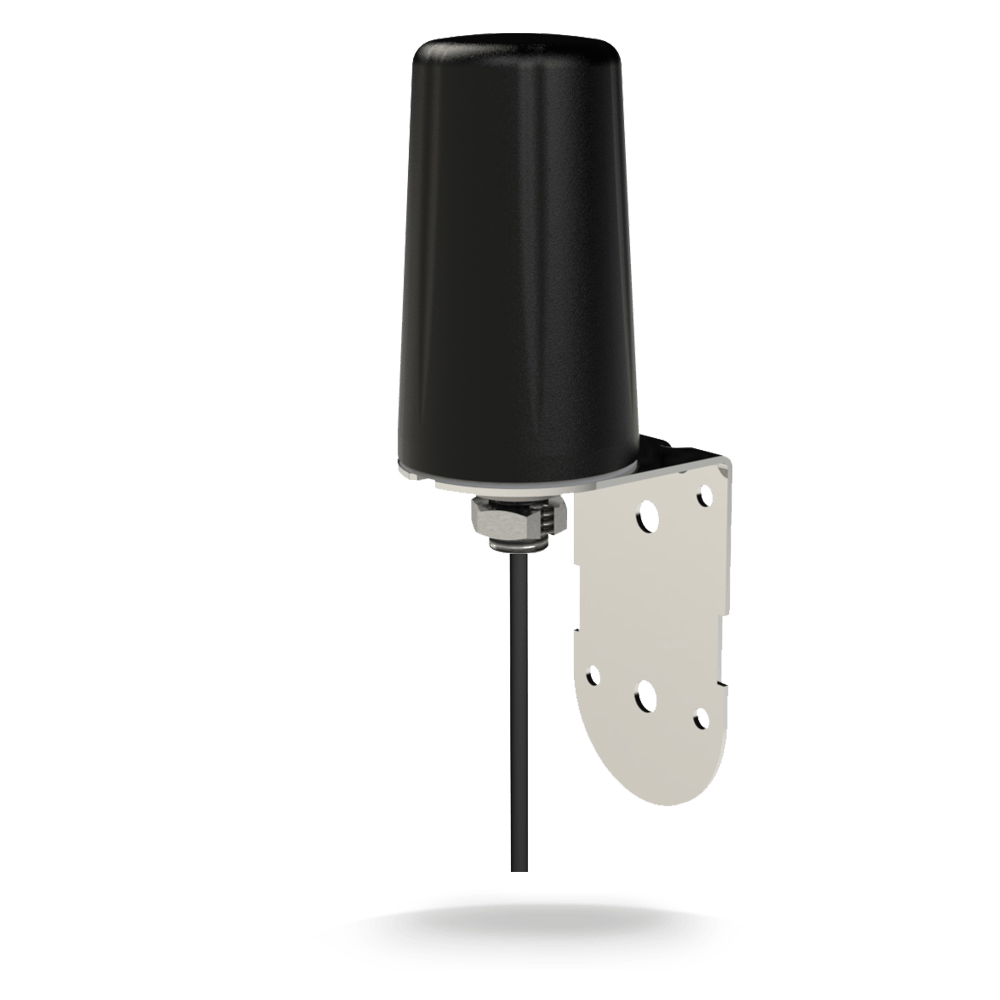

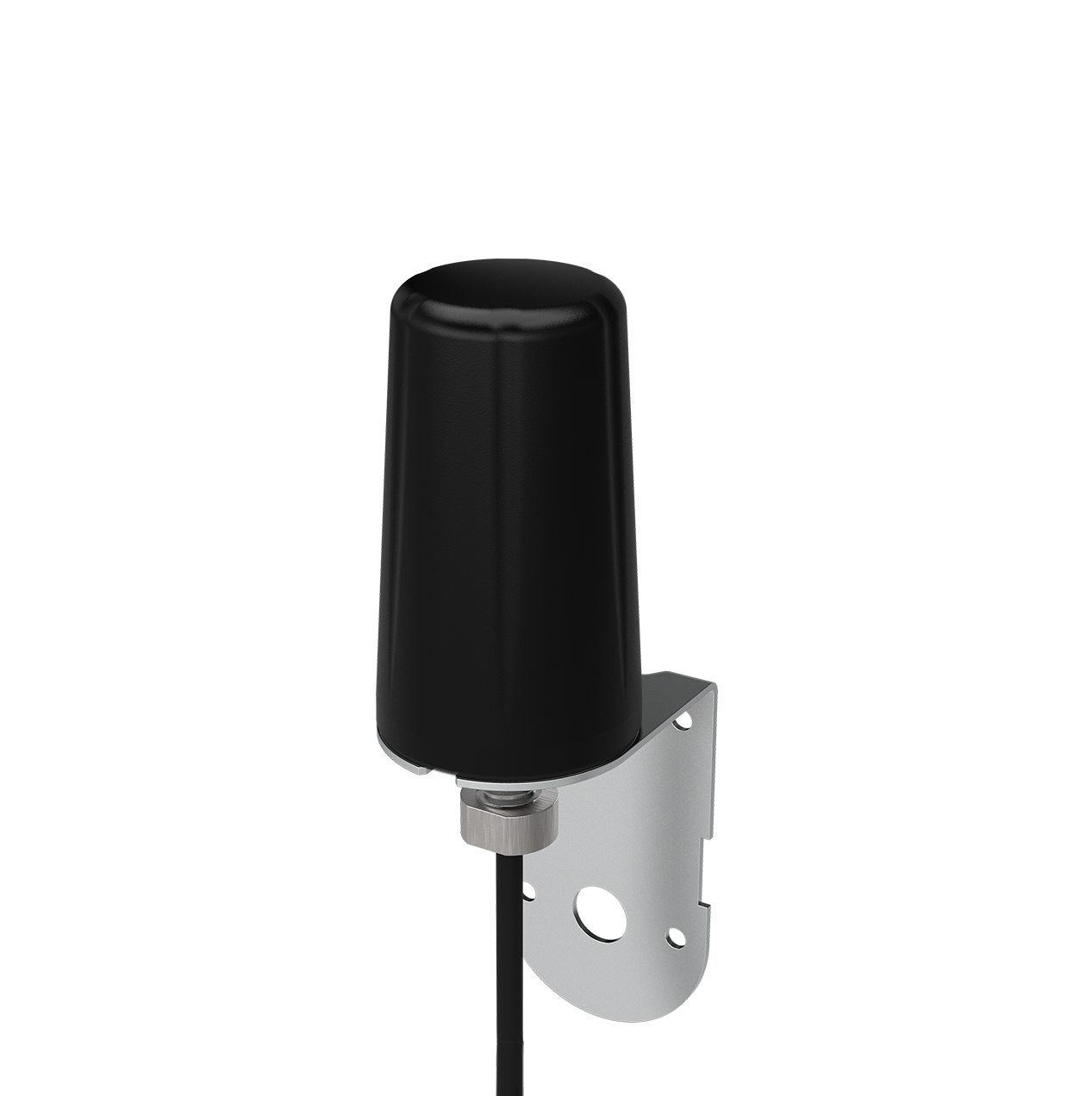

The integrated 5-meter low-loss coaxial cable is terminated with an SMA (male) connector, enabling simple plug-and-play connection with routers, modems, and IoT gateways. Built to withstand harsh environments, the unit is constructed with UV-stable materials, rated to IP66 standards for dust and water resistance, and operates reliably between -40°C and +85°C.

This antenna is engineered for demanding applications such as smart metering, EV chargers, industrial routers, and other outdoor IoT devices, providing enhanced cellular connectivity and future-proof performance in a compact, flame-retardant housing.

Key Features:

• Wide frequency coverage: 617–960 MHz and 1710–6000 MHz supporting global cellular bands including 5G


• Omni-directional antenna pattern for versatile mounting and reliable signal reception


• Integrated 5m low-loss cable with SMA (male) connector for easy installation


• Weatherproof IP66 rated enclosure with UV-stable, flame-retardant materials


• Supports up to 30W input power and rugged temperature range (-40°C to +85°C)

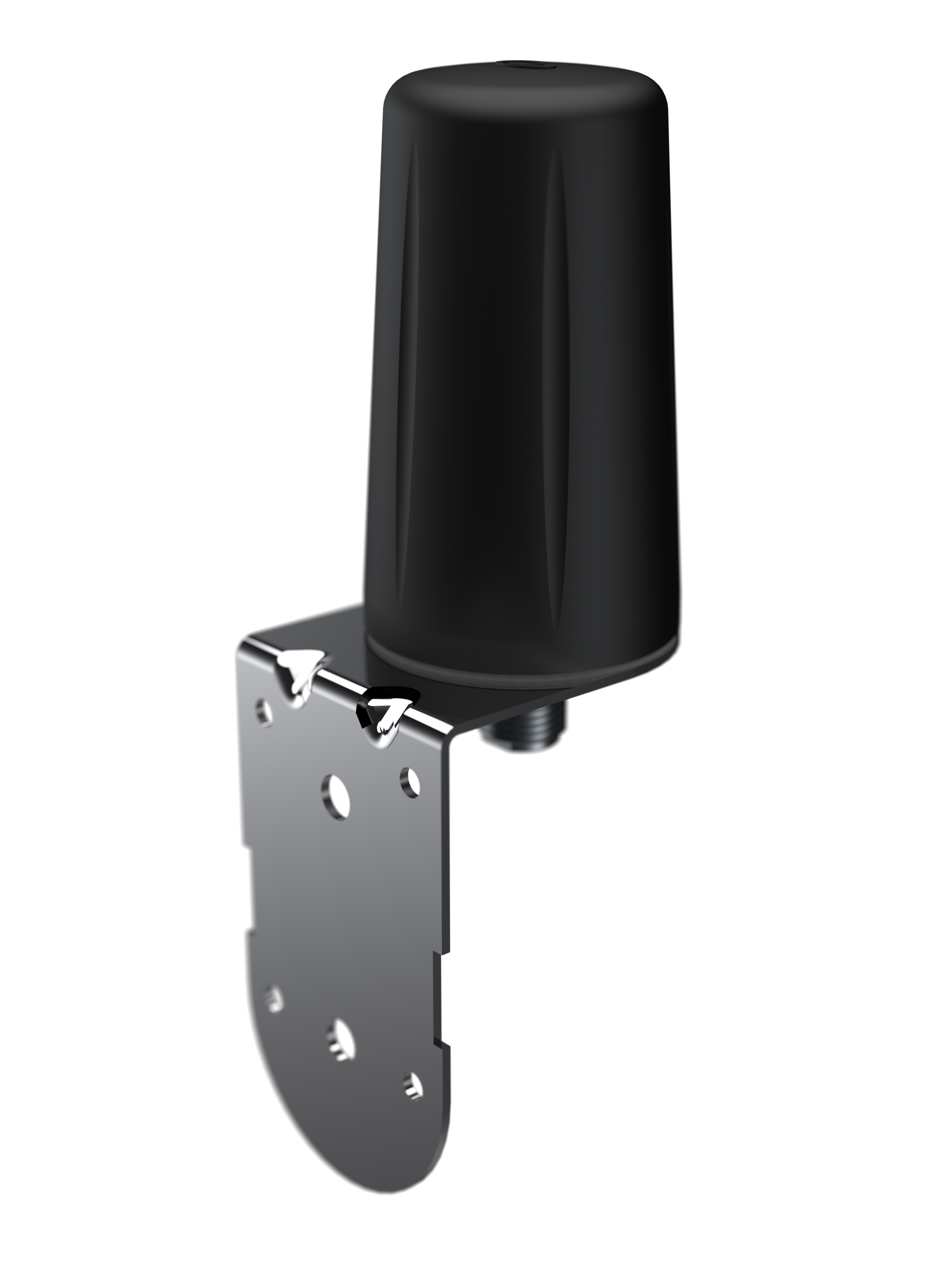

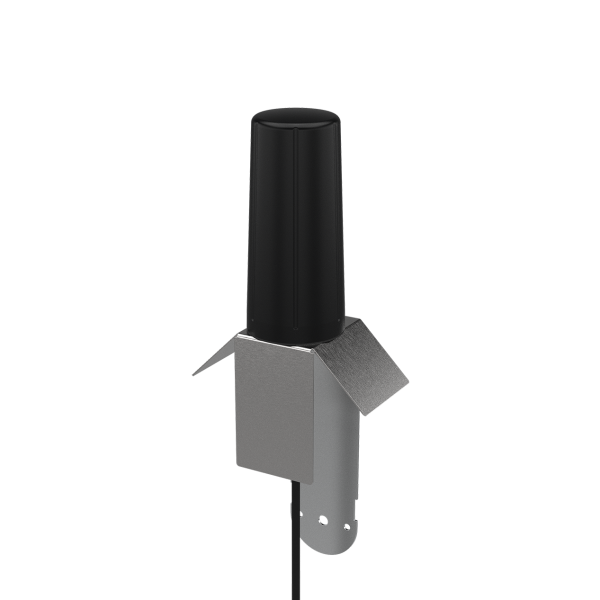

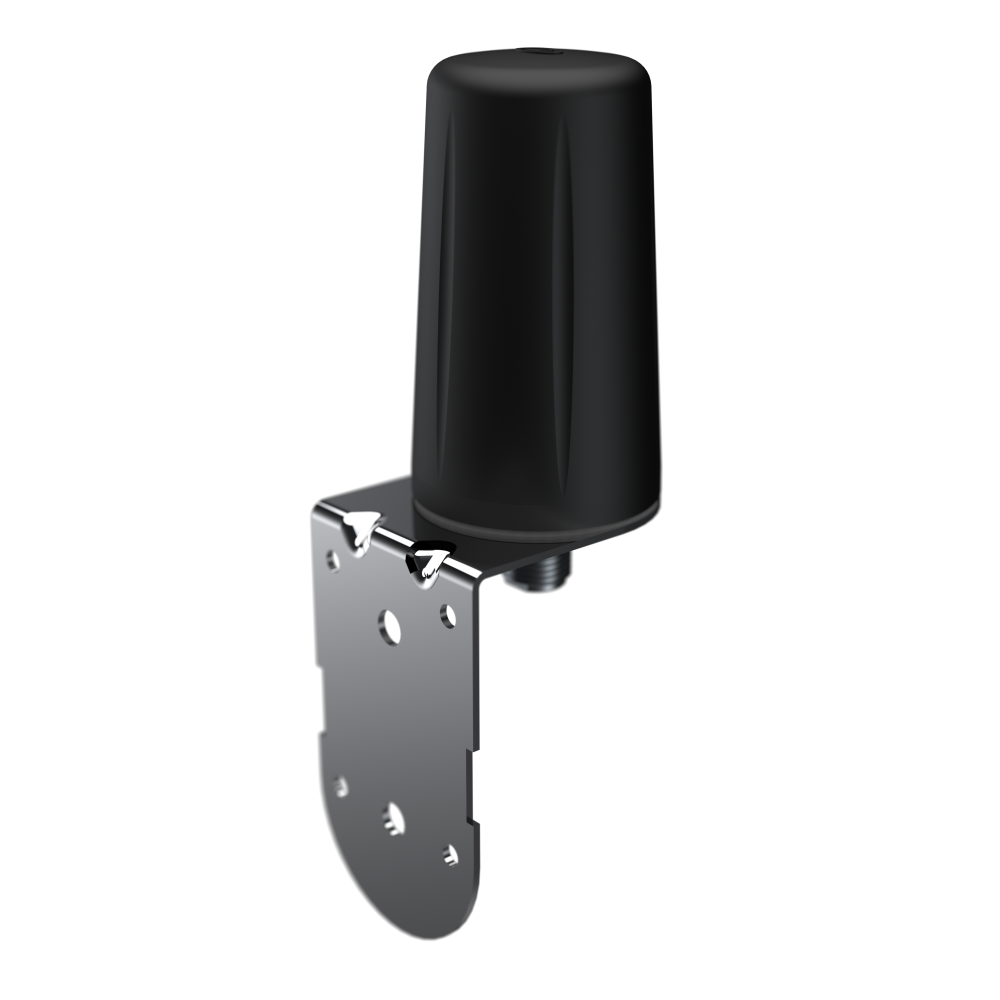

• Mountable on walls, masts, or panels with included bracket hardware
