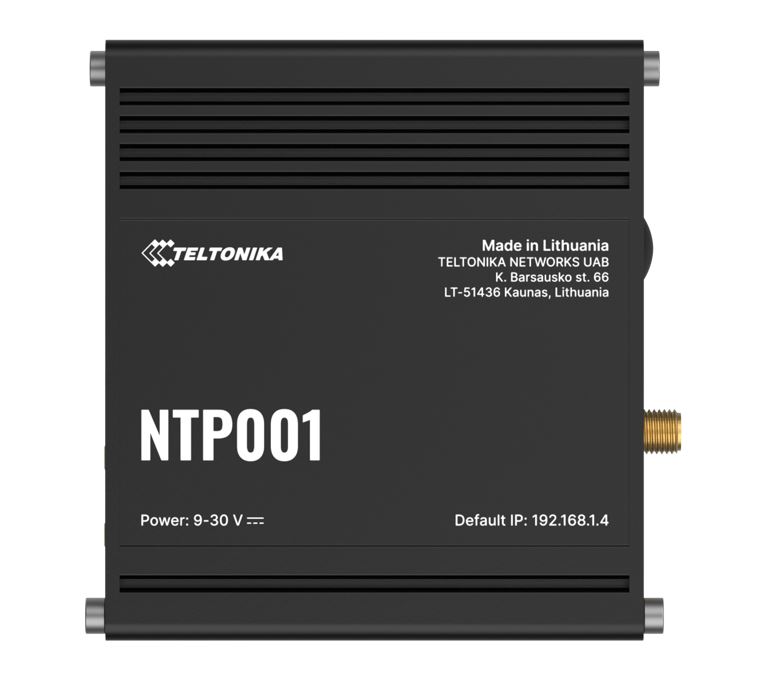

Teltonika NTP001 Stratum-1 GNSS NTP Server with Ethernet, RS232/RS485, ±1ms Accuracy & Robust Security Features
★ 0.0 Rating (0 user feedback)

SKU: NTP001000000

Availability: In Stock

Brand: Teltonika

Category: Network Interfaces

$385.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

Teltonika NTP001 is a high-precision, cost-effective Stratum-1 NTP server designed for accurate network time synchronization in public and private environments without relying on Internet access. It uses GNSS technology to provide reliable UTC-traceable time, supporting critical applications where precise timing is essential.

  • Time Synchronization: Utilizes GNSS as the primary time source to deliver NTPv4 time broadcast over Ethernet (10/100 Mbps) and serial interfaces (RS232, RS485), supporting Unicast, Multicast, and Broadcast modes.
  • High Accuracy: Achieves Ethernet NTP accuracy around ±1 ms and typical LAN synchronization ranging between 1 to 10 ms, handling over 300 NTP requests per second.
  • Robust Hardware: Powered by a Mediatek 580 MHz CPU with 128 MB DDR2 RAM and 16 MB NOR Flash storage, running RutOS (OpenWrt-based) firmware.
  • Multi-Interface Connectivity: Features one 10/100 Mbps LAN port, RS232/RS485 serial ports via 16-pin terminal block, 1 analog input, and 3 configurable digital I/Os.
  • Security: Comprehensive security profile including support for pre-shared keys, X.509 certificates, TACACS+, RADIUS, IP/login blocking, and 802.1x client authentication.
  • Durable Build & Mounting: Anodized aluminum enclosure with IP30 protection, compact footprint (82.6 × 25 × 83 mm, 180 g), supporting DIN-rail, wall, and flat surface mounting (mounts sold separately).
  • Management & Monitoring: Offers Web UI, SSH, SNMP (v1/v2/v3), JSON-RPC API, firmware upgrade support, and Teltonika remote management capabilities.
  • Additional Features: Includes Modbus server/client support (RTU over serial and Modbus TCP) and Modbus-to-MQTT gateway functionality.
Ideal for network infrastructures in industries requiring precise, reliable timekeeping such as telecommunications, industrial automation, data centers, and critical financial systems.

For comprehensive documentation, quick start guides, and firmware updates visit the [official Teltonika NTP001 product page](https://www.teltonika-networks.com/products/gateways/ntp001).

General

Model NumberNTP001000000
CertificationsCE,UKCA,CB,UCRF,EAC,WEEE
UPC4779051843275
Part NumberNTP001000000
Modbus SupportRTU (RS232/RS485),Modbus TCP,Modbus-to-MQTT gateway
Firmware FeaturesWeb UI,SSH,SNMP (v1/v2/v3),JSON-RPC API,remote management
Operating Temperature Range\u221240 \u00b0C to 75 \u00b0C
Operating Humidity10%\u201390% non-condensing
Power Supply9\u201330 V DC via 2-pin terminal
HousingAnodized aluminum,IP30 rated
Mounting OptionsDIN-rail,wall,flat surface (mounts sold separately)
Security FeaturesPre-shared key,X.509 certificates,TACACS+,RADIUS,IP/login blocking,802.1x client
Operating SystemRutOS (OpenWrt-based)
NTP Accuracy±1 ms Ethernet,typically 1–10 ms LAN
Storage16 MB NOR Flash
Serial InterfacesRS232,RS485 via 16-pin terminal block
Additional I/Os1 analog input,3 configurable digital I/Os
CPUMediatek 580 MHz,MIPS 24KEc
Memory128 MB DDR2 RAM
NTP VersionNTPv4
Network Interface1 \u00d7 10\/100 Mbps Ethernet (auto MDI\/MDIX)
Product TypeStratum-1 NTP Server
Time SourceGNSS (Global Navigation Satellite System)
Connector Type (Input)2-pin terminal block
Advanced FeaturesWeb UI,SSH,SNMP (v1/v2/v3),JSON-RPC API,Remote management,Modbus RTU/TCP gateway,Modbus-to-MQTT gateway,Security features (Pre-shared key, X.509 certificates, TACACS+, RADIUS, IP/login blocking, 802.1x client)
Supported StandardsNTPv4,SNMP v1/v2/v3,802.1x
Regulatory CertificationsCE,UKCA,CB,UCRF,EAC,WEEE
WeightApproximately 180 g
Supported Operating SystemsRutOS (OpenWrt-based)
Dimensions82.6 \u00d7 25 \u00d7 83 mm
transmission_rate_gbps_per_port0.1
Bracket TypeDIN-rail,wall,flat surface (mounts sold separately)
Copper Speed Support10\/100 Mbps
Power Supply9\u201330 V DC via 2-pin terminal
operating_temperature_c-40 \u00b0C to 75 \u00b0C
Network ControllerMediatek 580 MHz,MIPS 24KEc
InterfaceRS232,RS485 via 16-pin terminal block,Ethernet (1 × 10/100 Mbps)
Number of Ports1
Data Ports1 \u00d7 10\/100 Mbps Ethernet (auto MDI\/MDIX)
