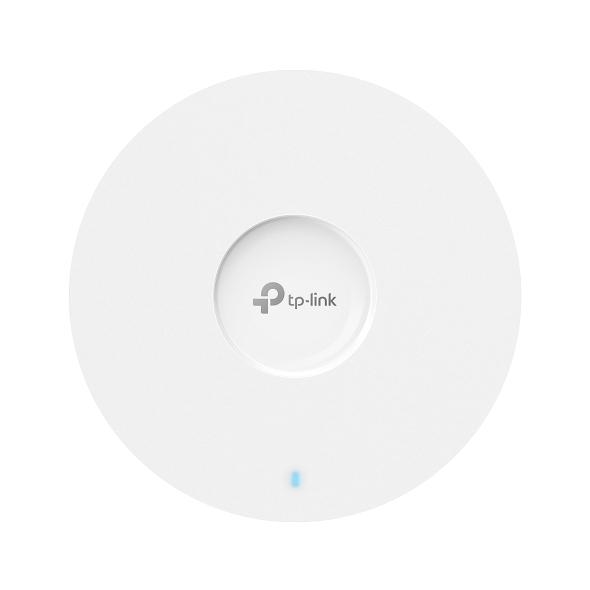

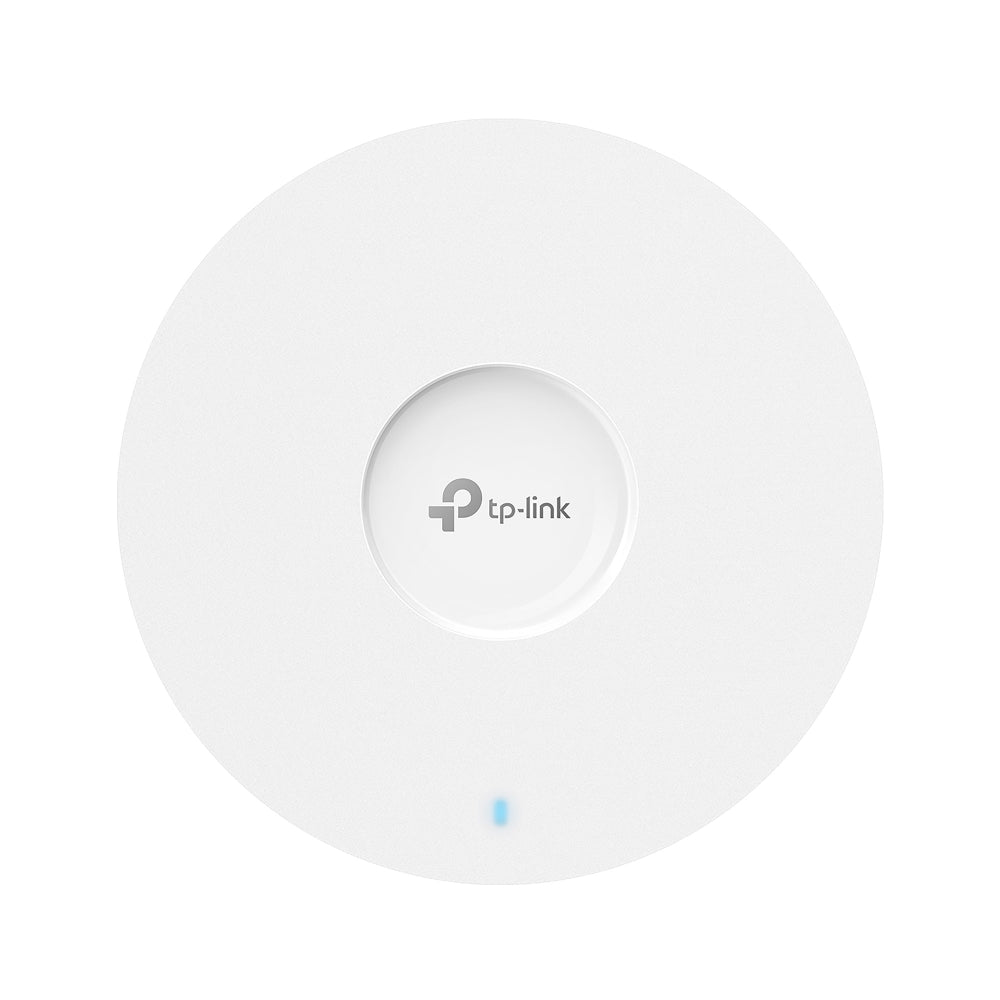

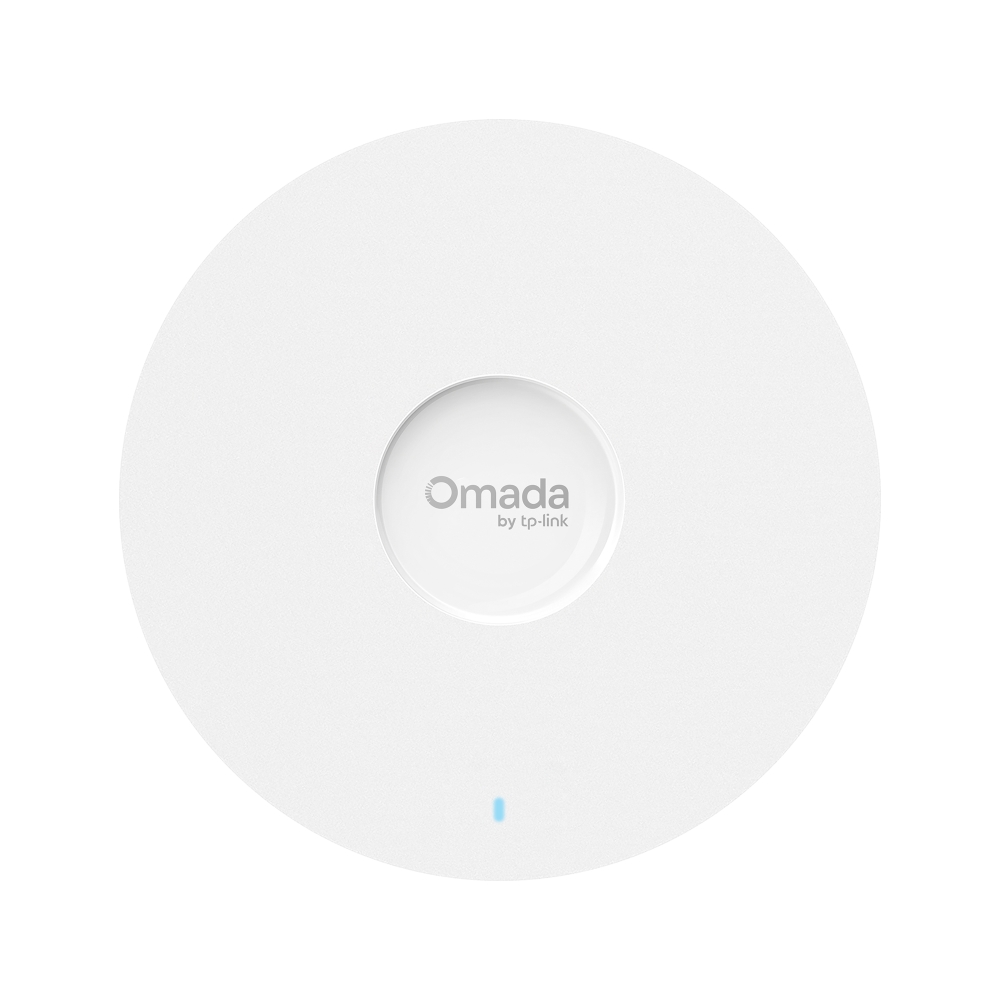

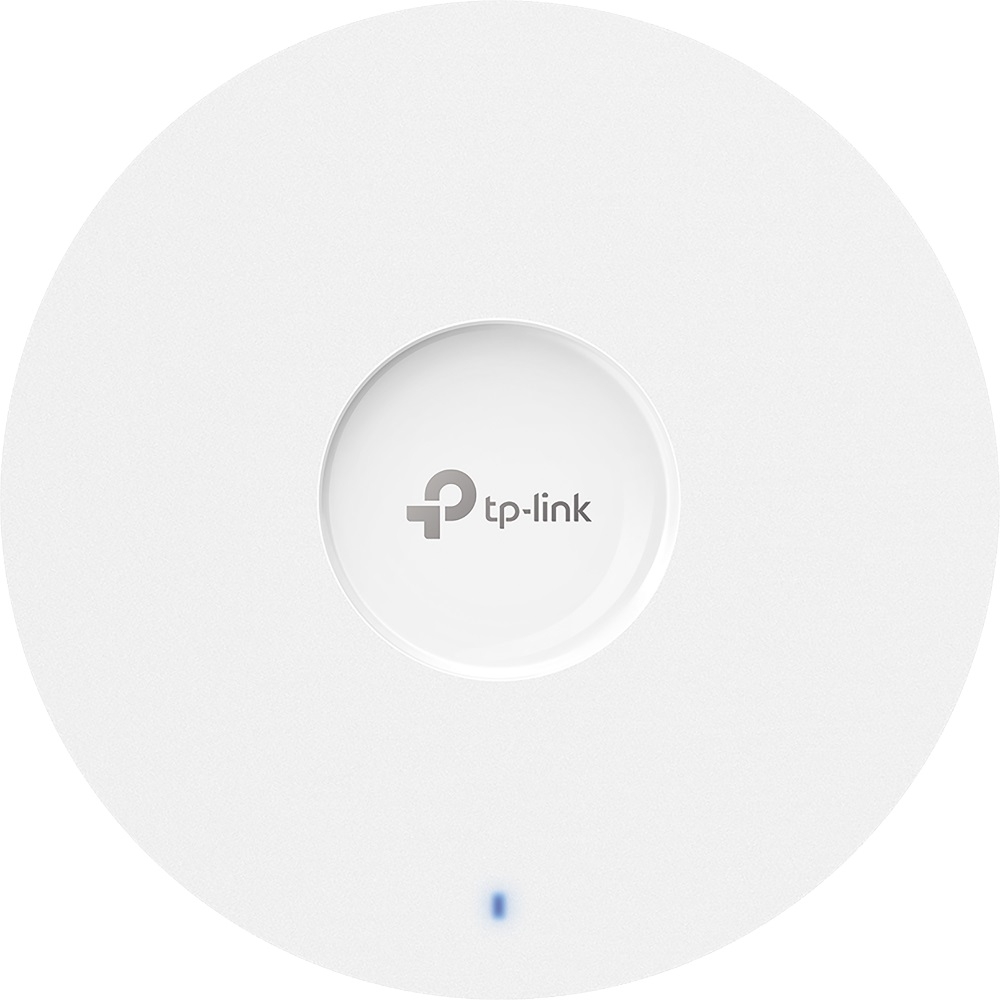

TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point delivers ultra-fast and reliable wireless connectivity with combined speeds up to 5952 Mbps (1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz), utilizing the latest Wi-Fi 6 standards. Designed for business and high-density environments, this access point supports advanced Wi-Fi 6 features such as HE160, 1024-QAM, OFDMA, and MU-MIMO to ensure seamless internet performance and extended coverage.
Equipped with 4×4 dual-band internal omni-directional antennas and high transmission power, the EAP683 UR offers excellent wireless range and stability. It features a 2.5 Gigabit RJ45 Ethernet port with PoE+ support (802.3at), plus an optional DC power input for flexible deployment options.
Integration with TP-Link's Omada SDN platform enables centralized cloud or on-premises management, simplifying network monitoring and control. Key functionalities include Omada Mesh networking, seamless roaming (802.11k/v/r), band steering, load balancing, airtime fairness, multiple SSIDs, and enhanced security standards (WPA/WPA2/WPA3, 802.1X, captive portal).
Bluetooth 5.2 support allows easy device management, while the included ceiling and wall mounting kits provide versatile installation options. The device supports up to 16 SSIDs and can handle 510+ concurrent clients, making it ideal for enterprise, campus, or large public Wi-Fi deployments.
Key Benefits:
Visit [TP-Link Official Website](https://www.tp-link.com/business-networking/omada-wifi-ceiling-mount/eap683-ur/) for more information.
| Warranty | 5 Years |
| Certifications | CE,FCC,RoHS |
| Simultaneous SSIDs | Up to 16 (8 per band) |
| Concurrent Clients | 510+ clients |
| Bluetooth Version | 5.2 |
| Dimensions | 220 \u00d7 220 \u00d7 32.5 mm |

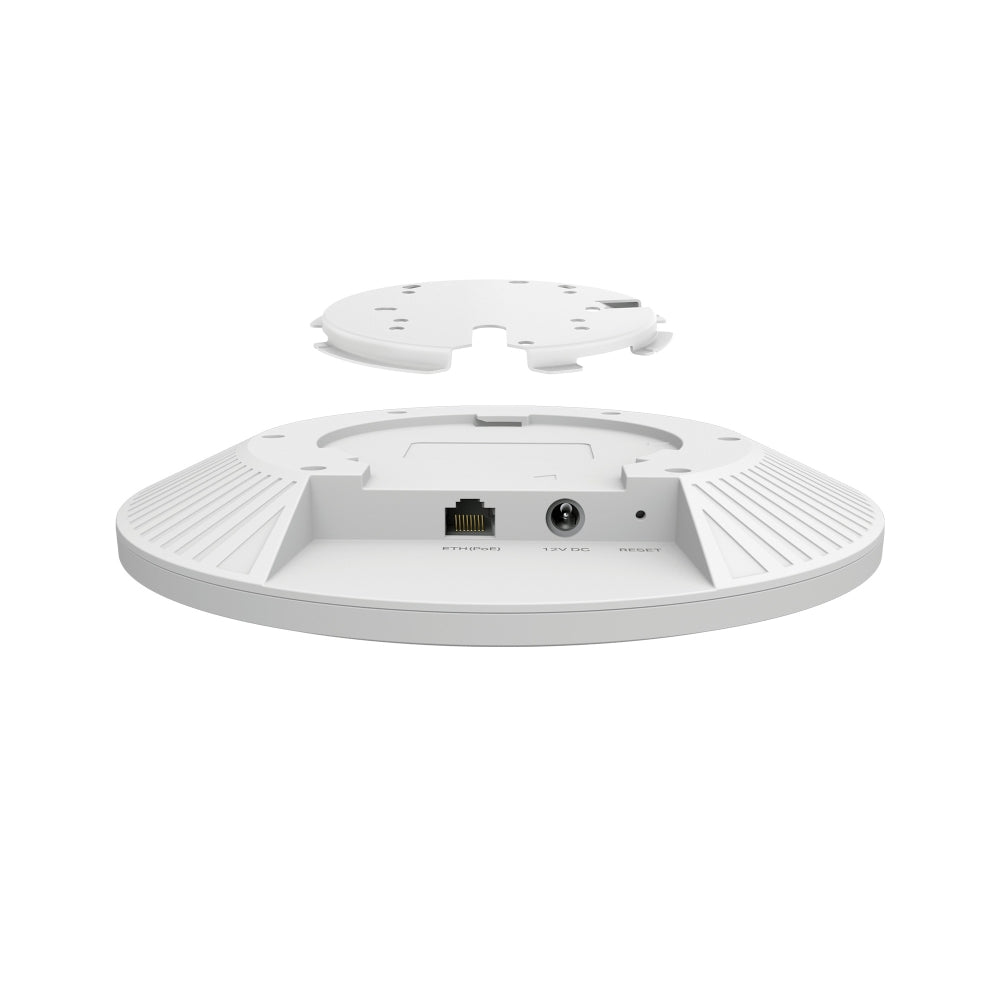

| Ethernet Ports | 1 \u00d7 2.5 Gigabit RJ45 with 802.3at PoE+ support |
| Power Consumption | EU: 20.43W; US: 23.69W |
| Mounting Options | Ceiling and wall mount kits included |
| Management | Omada SDN platform (cloud & on-premises),Omada App |
| Security | WPA/WPA2/WPA3,802.1X,Captive Portal,MAC Filtering |
| Wi-Fi Features | HE160,1024-QAM,OFDMA,MU-MIMO,beamforming,airtime fairness |
| Ethernet Port | 1 \u00d7 2.5 Gigabit RJ45 with 802.3at PoE+ support |
| Power Options | 802.3at PoE+ or DC input (adapter not included) |
| Antenna | 4\u00d74 dual-band internal omni antennas |
| Total Wireless Speed | Up to 5952 Mbps (1148 Mbps @ 2.4 GHz + 4804 Mbps @ 5 GHz) |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Power Consumption (W) | 20.43 |
| Model | EAP683 UR |
| Power Requirements | 802.3at PoE+ or DC input (adapter not included) |
| mimo_mode | 4x4 |
| Management Interface | Omada SDN platform (cloud & on-premises),Omada App |
| Model Number | EAP683 UR |
| lifetime_warranty_years | 5 |
| ipas_type | 802.3at PoE+ |
| max_data_rate_mbps | 5952 |
