SKU: Wave-MLO5
Availability: In Stock
Brand: Ubiquiti
Category: Wireless Adapters
100% Guarantee Safe Checkout

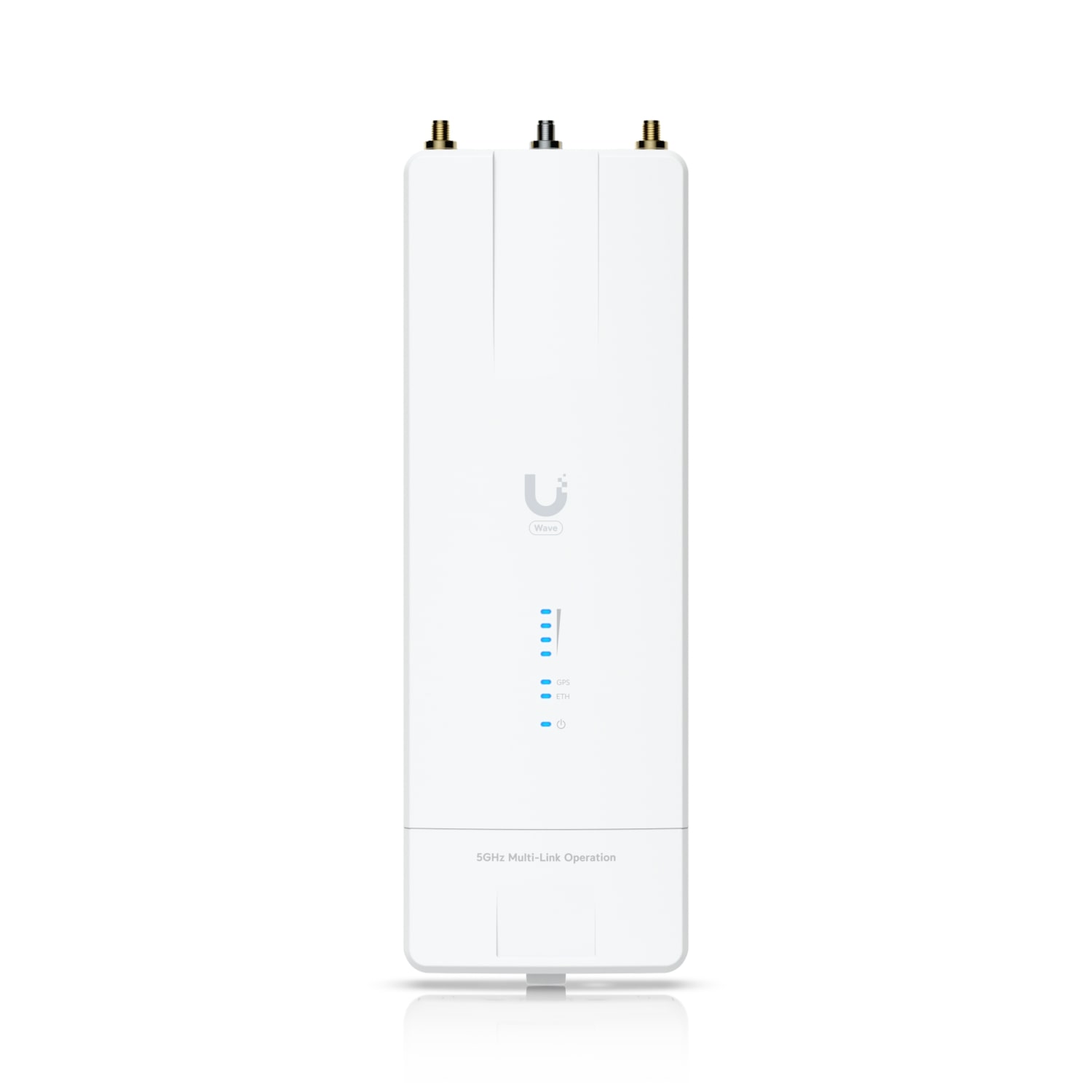

The Ubiquiti Wave MLO5 is a high-performance, long-range wireless radio optimized for point-to-point deployments and high-bandwidth backhaul applications. Featuring dual 5 GHz radios based on Wi-Fi 7 (802.11be) with Multi-Link Operation (MLO) technology, this device delivers enhanced throughput surpassing 5 Gbps aggregate speed and assures ultra-reliable connectivity by leveraging link redundancy and interference mitigation.
Key hardware highlights include a quad-core IPQ5322 processor clocked at 1.5 GHz paired with 1 GB DDR4 memory for stable performance. The unit supports extended transmission ranges up to 100 km under ideal conditions, though current firmware limits MLO to 20 km with future updates expected to extend this. It is powered via Passive PoE (44–54V DC), supplied with a 54V DC, 0.56A 10 GbE PoE adapter.
Connectivity options include one 10 GbE RJ45 port and one 10G SFP+ port, providing versatile uplink options via copper or fiber. The Wave MLO5 also integrates a dedicated spectral analysis radio and channel puncturing capabilities for advanced interference detection and avoidance.
Constructed for rugged outdoor environments, the device comes in an IPX6-rated aluminum alloy enclosure with UV-resistant polycarbonate components and supports operational temperatures from -40° to 60° Celsius. Installation is simplified via pole-mounting hardware and integrated Bluetooth for initial setup. GPS support is included for synchronization.
Managed via UISP software, the Wave MLO5 offers a suite of tools including alignment, speed testing, ping, traceroute, discovery, and site survey functions. Network security is ensured with WPA3-PSK (AES) encryption. This product is NDAA compliant and holds FCC, IC, and CE certifications.
Ideal for service providers and enterprises needing a robust, scalable wireless backhaul solution with cutting-edge WiFi 7 performance and extended operational range.
| Certifications | FCC,IC,CE,NDAA compliant |
| Security | WPA3-PSK (AES) |
| Management | UISP software with alignment,speed test,site survey,and diagnostics |
| Mounting | Pole mount hardware included |
| Enclosure Rating | IPX6 outdoor-rated |
| gps_support | Included |
| Bluetooth | Integrated for setup |
| Operating Temperature | -40 to 60\u00b0 C |
| Power Consumption | 20W max |
| Power Input | Passive PoE 44–54V DC,included 54V DC 0.56A adapter |
| Channel Puncturing | Supported |
| Ethernet Ports | 1 x 10 GbE RJ45,1 x 10G SFP+ |
| Spectral Analysis | Dedicated spectral analysis radio |
| Wireless Standard | Wi-Fi 7 (802.11be) |
| Operating Frequency | 5 GHz radios |
| Throughput | 5+ Gbps aggregate |
| Maximum Range | Up to 100 km (ideal conditions),MLO limited to 20 km |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| max_speed_5ghz_mbps | 5000 |
| interface_type | 1 x 10 GbE RJ45; 1 x 10G SFP+ |
| Management Interface | UISP software with alignment,speed test,site survey,and diagnostics |
| Frequency Bands | 5 GHz |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| interfaces | 1 x 10 GbE RJ45,1 x 10G SFP+ |
| Model | Wave MLO5 |
| Encryption | AES |
| backhaul_type | Wired |
| Memory | 1 GB DDR4 |
| wan_lan_ports | 1 x 10 GbE RJ45,1 x 10G SFP+ |
| processor_info | Quad-core IPQ5322 at 1.5 GHz |
| mesh_support | Multi-Link Operation (MLO) |
| Ethernet Ports | 1 x 10 GbE RJ45,1 x 10G SFP+ |
| band_count | 2 |
| Power Consumption (W) | 20 |
| Power Options | Passive PoE 44–54V DC,included 54V DC 0.56A adapter |
| Product Type | WiFi 7-based dual 5 GHz radios |
| Model Number | Wave MLO5 |
